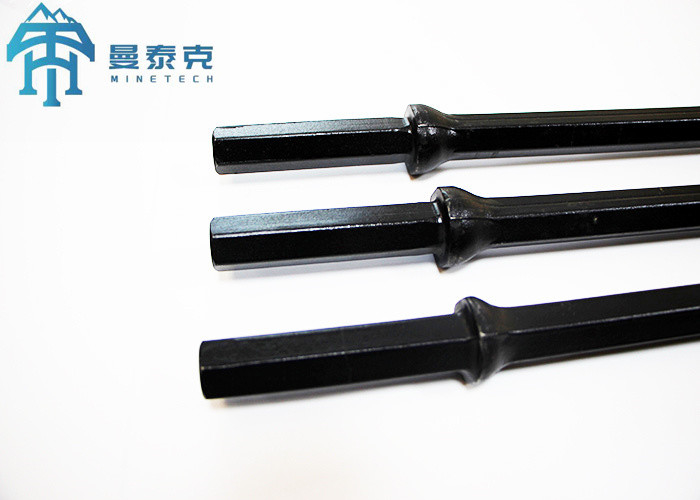

Shank H22x108mm Rock drilling tools Tapered Drill Rod Rock Drilling Tools
Description:
Taper degree:4 °6° 7° 11° 12° Drilling rod length:4 Inch/5 Inch/6 Inch/8 Inch......
The tapered drill rod is used for rock drilling, blasting holes and other drilling works in the quarries, coal mines, traffic and other constructions. Generally, the lightduty rock drill uses 7° taper or smaller taper angle, the heavyduty rock drill mainly uses 12 taper angle.
The tapered drill rods are used for Penumatic rock drill and Hydraulic rock drill.Medium hard to hard and abrasive rock formations. Such as Y24, Y26, YT24, YT27, YT28, YT29 and YN27C rock drill.
Applications:
• Underground mining
• Tunneling
• Quarrying
• Widely used in bench and long hole drilling
• Perfect design can dealing with soft to medium-hard rock formations
Products advantages:
1. Integral and taper drill rod
2. Shank Hex.19mm Hex.22mm and Hex.25mm
3. Taper degree: 4° 6° 7° 11° 12°
4. Drilling length:0.4m-6m
5. The third generation
| Drill Rod |
Length(mm) with shank |
Foot |
Weight approx(kg) |
Taper |
shank |
| Tapered Drill Rod |
1320mm |
4'' |
4.4 |
7,11,12 degree |
108mm |
| Tapered Drill Rod |
1632mm |
5'' |
5.4 |
7,11,12 degree |
108mm |
| Tapered Drill Rod |
1936mm |
6'' |
6.4 |
7,11,12 degree |
108mm |
| Tapered Drill Rod |
2546mm |
8'' |
8.4 |
7,11,12 degree |
108mm |
